Product main technical specifications:
SPECIFICATIONS | Units | VMC840 |
Table size | mm | 900*450 |
X axis travel | mm | 800 |
Y axis travel | mm | 400 |
Z axis travel | mm | 500 |
Max. worktable load | kg | 450 |
T slot(number-width*pitch) | - | 3-18*130 |
Max. spindle speed | rpm | 8000 |
Spindle taper | BT | BT40 |
Main motor power | kw | 5.5 |
X/Y/Z rapid traverse speed | m/min | 24/24/20 |
Cutting feed speed | mm/min | 1-10000 |
Guide rail type | - | Linear rail |
Distance from spindle axis to column surface | mm | 520 |
Distance between spindle nose and table surface | mm | 130-630 |
Positioning accuracy | mm | ±0.0075 |
Repeat positioning accuracy | mm | ±0.005 |

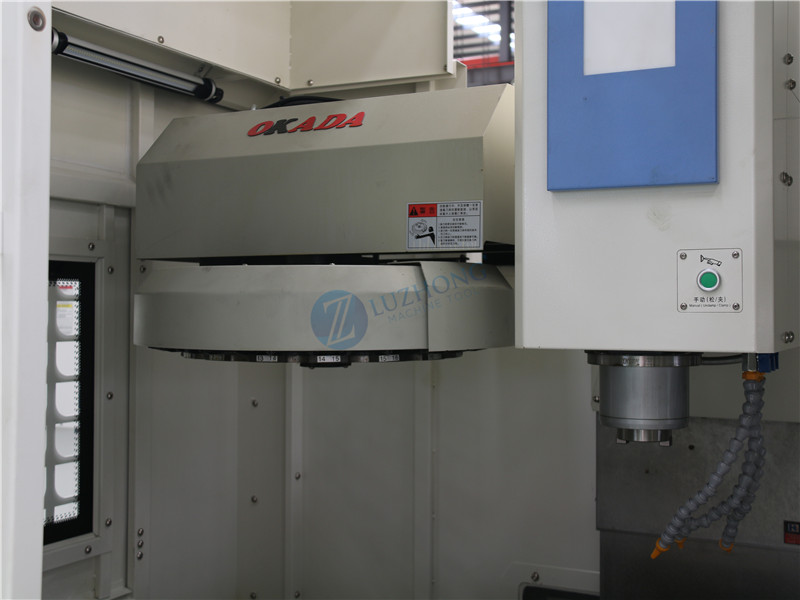

Tool magazine | - | Armless 16 |
Max. tool diameter | mm | φ90 |
Max. tool weight | kg | 8 |
Machine weight | kg | 4200 |
Overall dimension | mm | 2500*2050*2550 |
