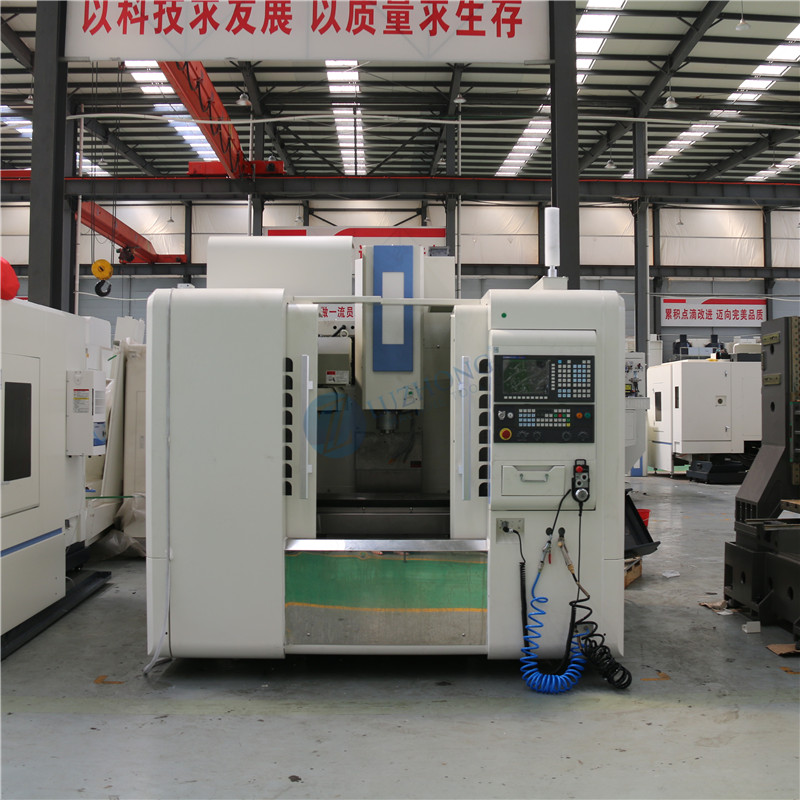

VMC650 Vertical Machining Center

Share



Product main technical specifications:

SPECIFICATIONS

Units

VMC650

Table size

mm

800*400

X axis travel

mm

650

Y axis travel

mm

400

Z axis travel

mm

500

Max. worktable load

kg

400

T slot(number-width*pitch)

-

3-18*125

Max. spindle speed

rpm

8000

Spindle taper

BT

BT40

Main motor power

kw

5.5

X/Y/Z rapid traverse speed

m/min

24/24/20

Cutting feed speed

mm/min

1-10000

Guide rail type

-

Linear rail

Distance from spindle axis to column surface

mm

469

Distance between spindle nose and table surface

mm

100-600

Positioning accuracy

mm

±0.0075

Repeat positioning accuracy

mm

±0.005

Tool magazine

-

Armless 16

Max. tool diameter

mm

φ90

Max. tool weight

kg

8

Machine weight

kg

4000

Overall dimension

mm

2400*2000*2550
