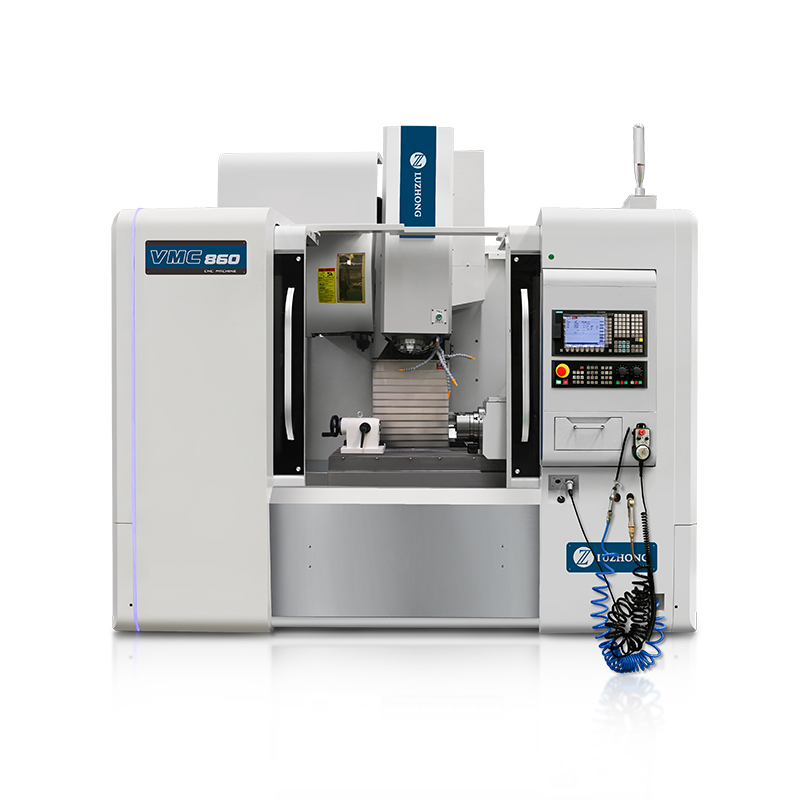

VMC860 Vertical Machining Center

Share

Product main technical specifications:

SPECIFICATIONS

Units

VMC860

Table size

mm

1000*550

X axis travel

mm

800

Y axis travel

mm

600

Z axis travel

mm

600

Max. worktable load

kg

600

T slot(number-width*pitch)

-

5-18*100

Max. spindle speed

rpm

8000

Spindle taper

BT

BT40

Main motor power

kw

7.5

X/Y/Z rapid traverse speed

m/min

24/24/20

Cutting feed speed

mm/min

1-8000

Guide rail type

-

Linear rail

Distance from spindle axis to column surface

mm

590

Distance between spindle nose and table surface

mm

130-660

Positioning accuracy

mm

±0.0075

Repeat positioning accuracy

mm

±0.005

Tool magazine

-

Arm 24

Max. tool diameter

mm

78/120

Max. tool weight

kg

8

Machine weight

kg

6000

Overall dimension

mm

2900*2400*2800
