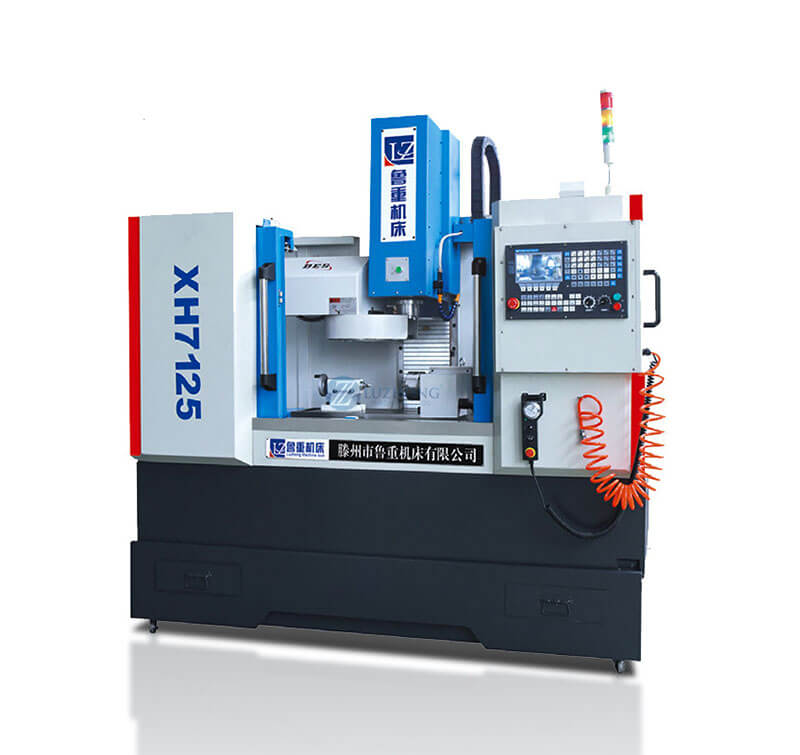

Product main technical specifications:
| Specifications | Unit | XH7125 |
| Table size | mm | 900×250 |
| X-axis travel | mm | 450 |
| Y-axis travel | mm | 260 |
| Z-axis travel | mm | 380 |
| Distance from spindle axis to column surface | mm | 330 |
| Distance between spindle nose and worktable | mm | 50-430 |
| The vertical tolerance of distance between spindle nose and worktable | mm | ≦0.02 |
| X/Y/Z rapid traverse | M/min | 6/5/4 |
| Max.spindle speed | rpm | 6000 |
| Spindle taper | BT30 | |
| Main motor power | kw | 2.2 |
| X axis motor torque | N.m | 7.7 |
| Y axis motor torque | N.m | 6 |
| Z axis motor torque | N.m | 6 |
| Tool capacity | 12 armless type tools magazine | |
| Positioning accuracy | mm | 0.02 |
| Repeat positioning accuracy | mm | 0.01 |
| Machine dimension | mm | 2200×1650×2200 |
| Machine weight | kg | 1800 |
