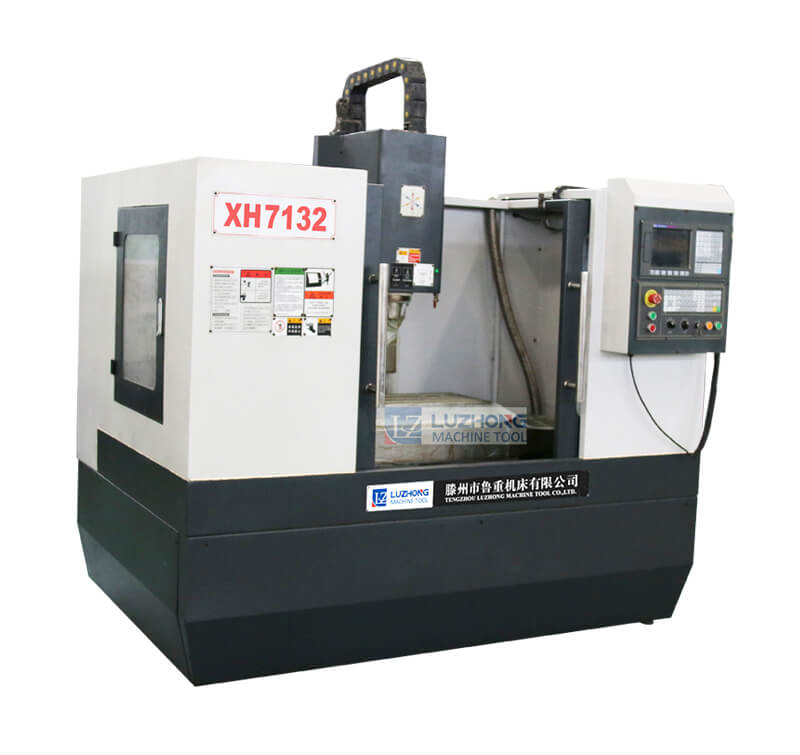

XH7132 Vertical Machining Center

Product configuration:

Standard configuration:

1.The CNC system: KND-1000 control system

2.The high quality castings: Resin sand casting

3.The spindle: Taiwan famous high speed spindle

4.The screw: HIWIN

5.The knife: The famous Taiwan bamboo hat knife.(OPTIONAL)

6.The unclamping cylinder: Taiwan Shangpin

7.The weight: Wuxi Xieqinging nitrogen balance

8.The bearing: Japan NTN

9.The Internal protection: Total protection

Select the configuration:

1.air condition

2.Heat exchanger

3.Forth axis

4.Spindle central water discharge

5.Air gun

The main performance characteristics：

1.The fuselage and main components are  high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.

2.The column at the bottom of A type bridge type structure, combined with the big box base, greatly reduce  the vibration of machine on heavy cutting

3.The pre tension precision ball screw drive

4.The high speed, high precision, high rigidity spindle unit

5.The design of oil-water separation

6.The intermittent automatic lubrication

7.Automatic scraping knife system

Application：

The vertical machining center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in aerospace, military industry, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.

Product main technical specifications:
