XH7136 Vertical Machining Center

Share

Product main technical specifications:

SPECIFICATIONS

Units

XH7136

Table size

mm

900*400

X axis travel

mm

800

Y axis travel

mm

400

Z axis travel

mm

500

Max. worktable load

kg

450

T slot(number-width*pitch)

-

3-18*130

Max. spindle speed

rpm

8000

Spindle taper

BT

BT40

Main motor power

kw

5.5

X/Y/Z rapid traverse speed

m/min

24/24/20

Cutting feed speed

mm/min

1-10000

Guide rail type

-

Linear rail

Distance from spindle axis to column surface

mm

520

Distance between spindle nose and table surface

mm

130-630

Positioning accuracy

mm

±0.0075

Repeat positioning accuracy

mm

±0.005

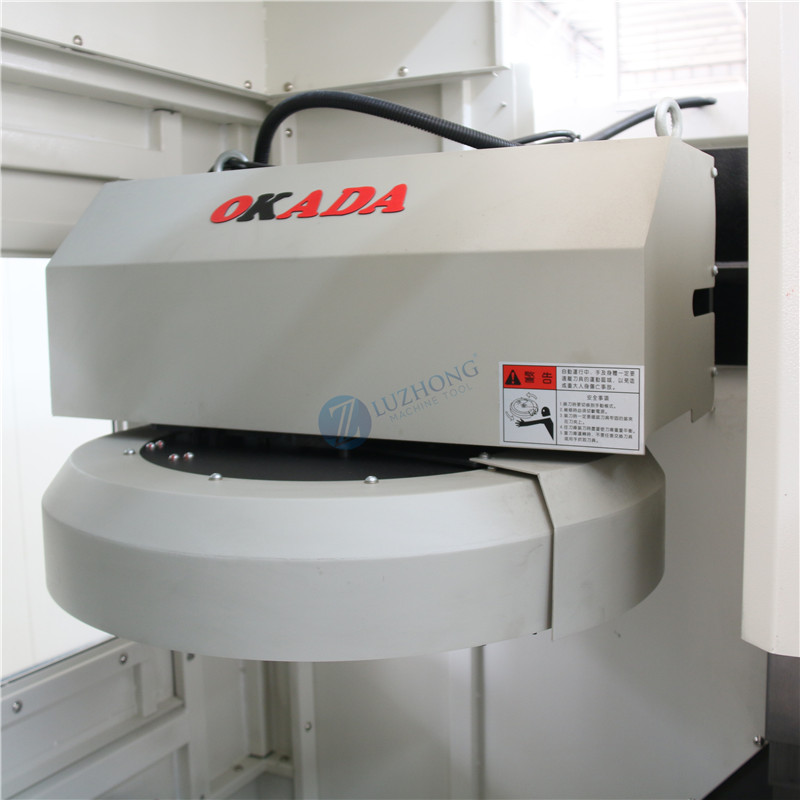

Tool magazine

-

Armless 16

Max. tool diameter

mm

φ90

Max. tool weight

kg

8

Machine weight

kg

4200

Overall dimension

mm

2500*2050*2550
